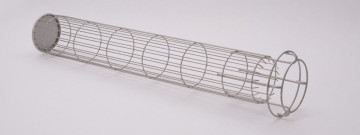

Configurable filter cages

Our range encompasses filter cages with the following basic shapes:

• Round with an external Ø of 40 to 250 mm
• Star-shaped with an external Ø of 115 to 150 mm (in various star shapes)
• Oval and flattened oval
• Quadratic with an edge length of 100 mm to 150 mm

4 to 24 longitudinal rods can be achieved, expandable in 2 stages in all cases. Standard diameters are 2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 5.0 mm.

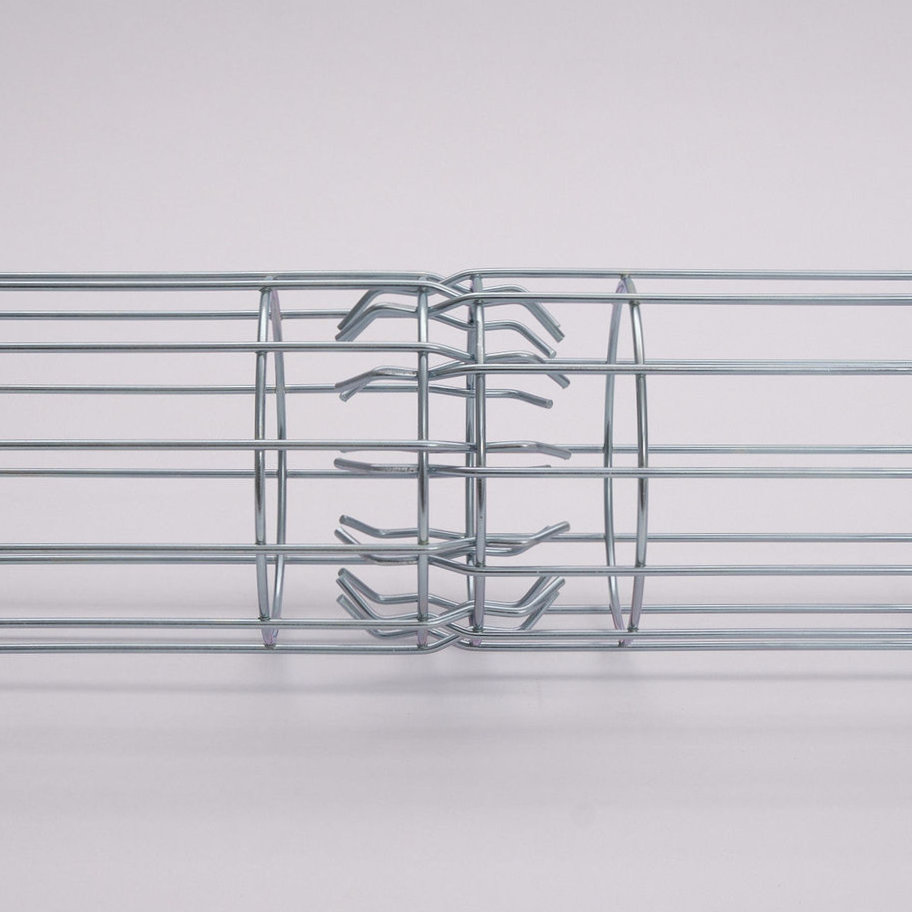

Filter cage lengths can be realised in sections of up to max. 7,000 mm, and these can be expanded using joint systems. Ring spacing is realised to customer specifications, but is a minimum of 25 mm.
